Intuition-c

Single-zone Heating Control

Product Features:

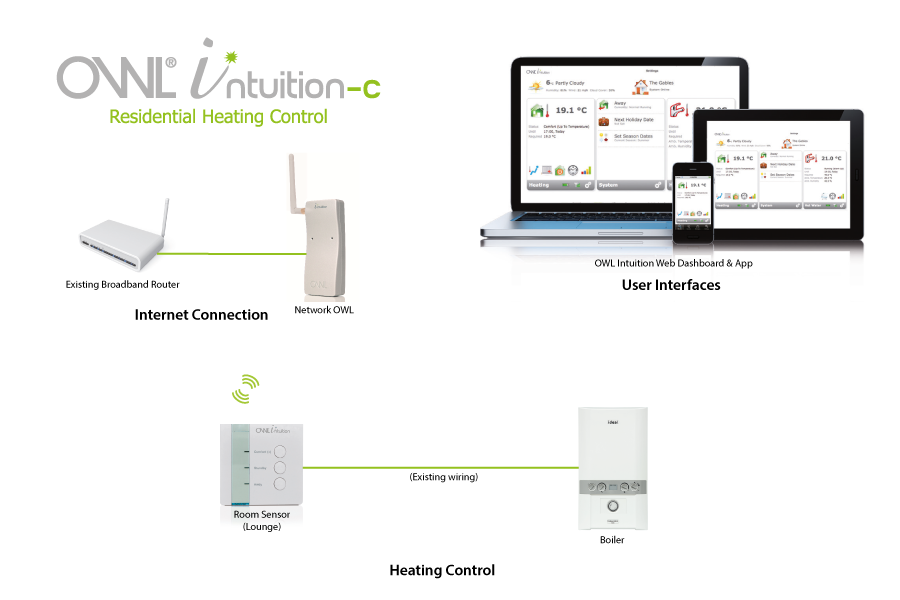

  • Smart thermostat allows web based control of a single heating zone. (Additional zones can be added - see Options)

  • Programmable timeclock and temperature control; which intelligently calculates times to turn on to maximise benefit.

  • Retrofits existing wired heating controls.

  • Access via mobile device or PC to smartphone app or web dashboard - wherever you have internet. Turn the heating on if you're coming home early; or turn it off if you've left it running.

Intuition -C
PLEASE NOTE: OWL recommends that all Intuition Smart Heating Controls are installed by a qualified heating engineer. Not all boilers can accept external thermostats. Please contact your boiler manufacturer to find out if your boiler is able to accept an external control.

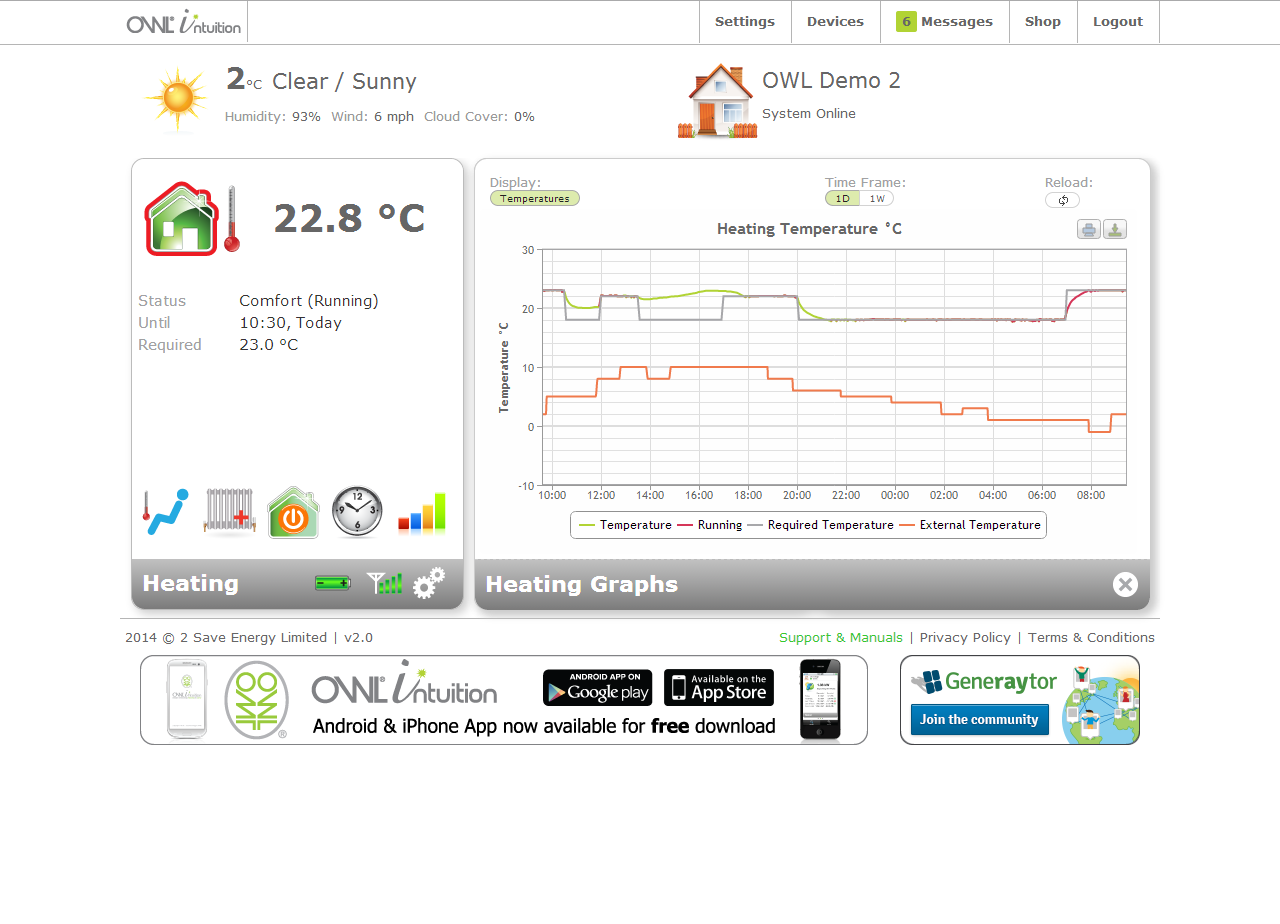

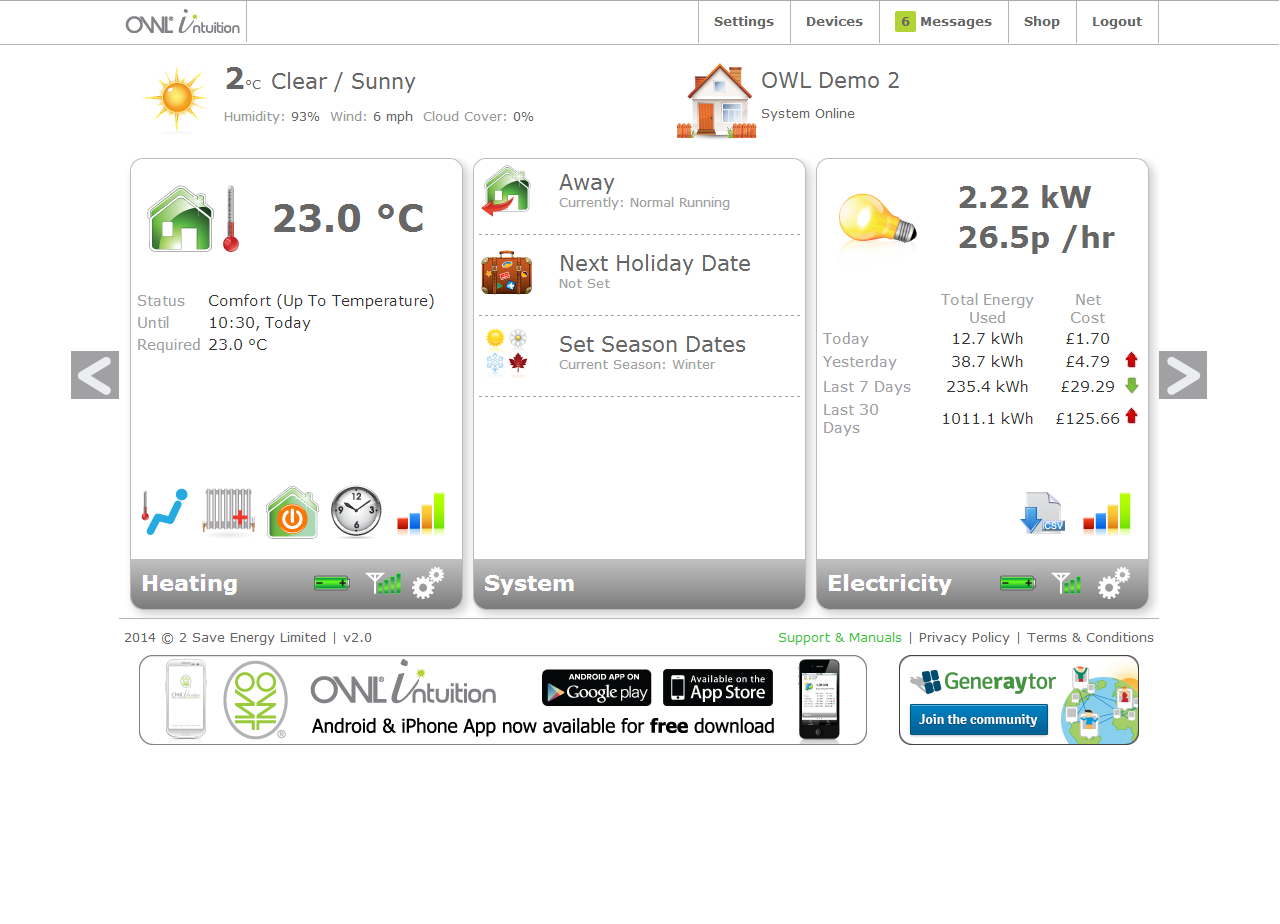

OWL Intuition-c Dashboard Screenshots

Click for larger images.

Intuition -C Screenshot 1Intuition -C Screenshot 2

Technical Specifications
Technical Specifications:
Network OWL – 868MHz & 433MHz
Heating Controls – 868MHz
Operating range up to 50m (In free space)
Storage conditions: -25˚C to +65˚C
Relative humidity: 25% to 95% non-condensing
Operating temperature: 0˚C to 40˚C
Ingress protection: IP30

Standards Compliance
IEC 60730-1:2001 / BS EN 60730-1:2001
BS EN 55014-1:2006+A1:2009
BS EN 55014-2:1997
ETSI EN 300 220-1 V2.1.1 (2006-04) / ETSI EN 300 220-2 V2.1.2 (2007-06)
ETSI EN 301 489-1 V1.8.1 (2008-04) / ETSI EN 301 489-3 V1.4.1 (2002-08)
R&TTE - WEEE Directive, RoHS, Battery Directive


Includes
Network OWL Gateway,
Room Sensor [RBT-3C] (Battery powered, with Comfort (+), Standby & Away buttons),
back plate,
safety wiring cover,
4 x AAA alkaline battery,
Installation Instructions.

Brochures and Manuals

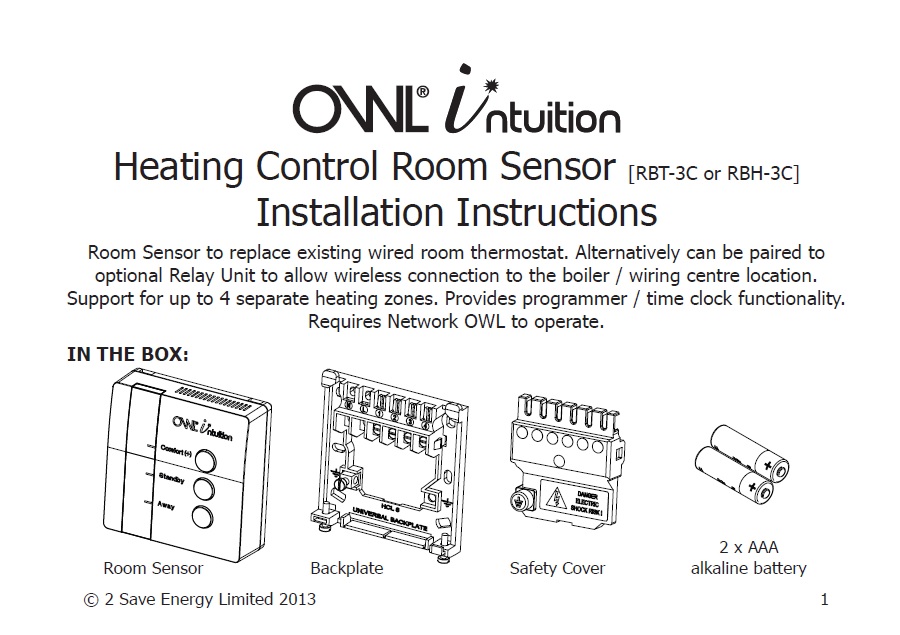

Smart Heating Brochure Room Sensor Manual  Heating Control Wiring Diagrams
Brochure Room Sensor
Installation Manual

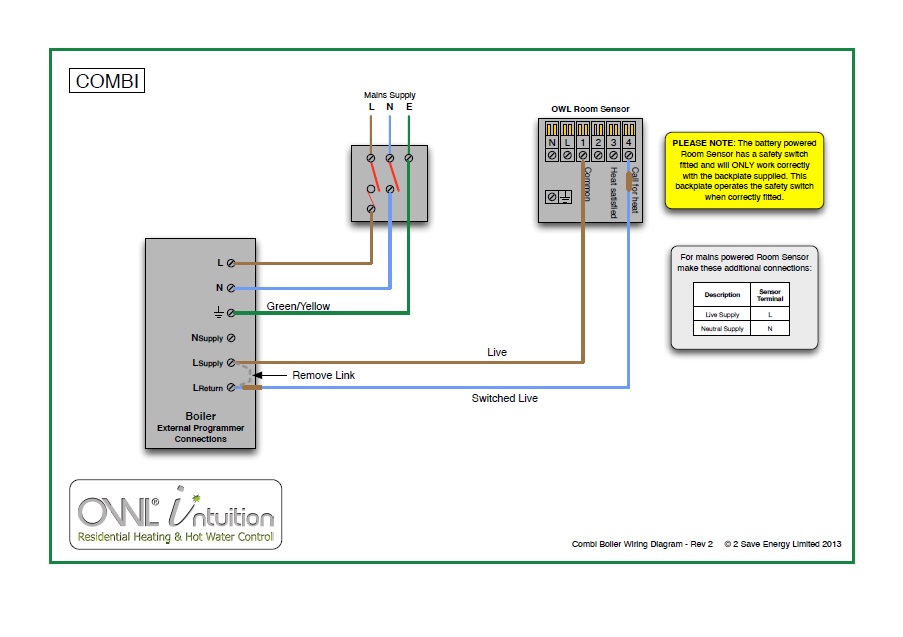

Wiring Diagrams
