Sensors

Product Features:

  • Working in tandem with a 3-channel transmitter can add electricity or solar monitoring to your Intuition installation.

  • Two sizes available: Standard (10mm diameter cable, 72A max) or Large (17mm diameter cable, 200A max).

  • Operates on any live-only cable.

  • Simple, safe installation at the meter - can also be installed inside a consumer unit by a qualified electrician.

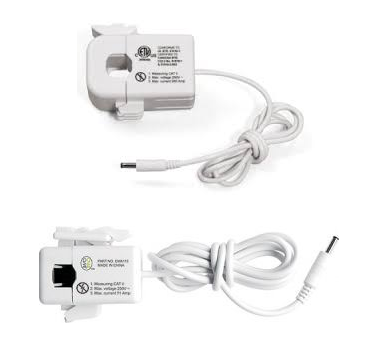

 Sensor Clamps



Technical Specifications
Technical Specifications (standard sensor)

Product Dimensions
Clamp Dimensions: h 50mm; w 50mm; d 30mm
Cable diameter: 4mm
Cable Length: ~1.2m

Detection Limitations
Max Readable Volts: 250V
Max Readable Amps: 72A
Max Cable Diameter: 10mm
Max Cross Sectional Area: 78.5 mm²
Exceeding these figures will cause inaccuracy in readings from the sensor in question.

Technical Specifications (large sensor)

Product Dimensions
Clamp Dimensions: h 70mm; w 70mm; d 50mm
Cable diameter: 4mm
Cable Length: ~1.2m

Detection Limitations
Max Readable Volts: 250V
Max Readable Amps: 200A
Max Cable Diameter: 17mm
Max Cross Sectional Area: 226.0 mm²
Exceeding these figures will cause inaccuracy in readings from the sensor in question.
Brochures and Manuals

Due to sensors being used in a wide variety of configurations, there are no manuals for this product. Please consult documentation relating to your other devices for installation instructions.
